Heavy Machine Shop

Heavy Machine Shop

×

Precision Machining with Cutting-Edge Equipment

CNC Gantry Milling & Boring Machine

Make: INNSE Italy

SpecificationDetails
Machine TypeCNC Gantry Milling & Boring
Distance Between Columns4000 mm
Distance Between Spindle and Table2100 mm
X-Axis Travel15,000 mm
Y-Axis Travel4700 mm
W-Axis Travel1250 mm
U-Axis Travel800 mm
Table Size3000 mm x 14,000 mm
Table Capacity5 ton/sq.m

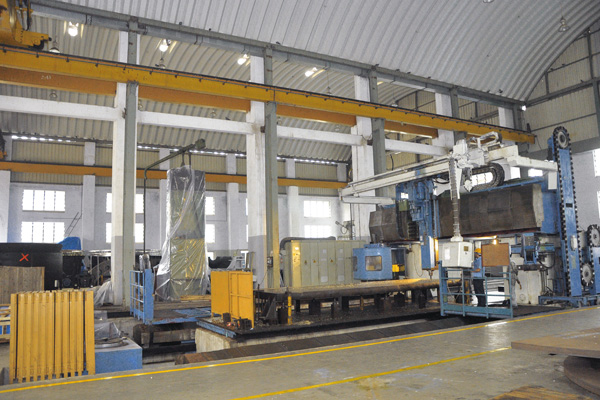

CNC Gantry Milling & Boring Machine

CNC Horizontal Boring Machines (HBM)

Make: WMW Union Germany (2 Units)

Unit 1

SpecificationDetails
Spindle Diameter130 mm
X-Axis Travel10,500 mm
Y-Axis Travel3500 mm
Z-Axis Travel1500 mm
W & Spindle Axis Travel500 + 900 mm
Table Size2000 mm x 2000 mm
Table Capacity10 Ton
CNC Horizontal Boring Machine Unit 1

Unit 2

SpecificationDetails
Spindle Diameter130 mm
X-Axis Travel2100 mm
Y-Axis Travel2500 mm
Z-Axis Travel2300 mm
W-Axis Travel900 mm
Table Size2000 mm x 1800 mm
Table Capacity8 Ton
CNC Horizontal Boring Machine Unit 2

Additional Horizontal Boring Machines (HBM)

HBM with DRO - Pegard Germany

SpecificationDetails
Spindle Diameter160 mm
X-Axis Travel6000 mm
Y-Axis Travel3000 mm
W-Axis Travel1400 mm
Table Size5000 mm x 3000 mm
Table CapacityNot specified
HBM with DRO - Pegard Germany

WMW Union Germany

SpecificationDetails
Spindle Diameter130 mm
X-Axis Travel2700 mm
Y-Axis Travel1900 mm
Z-Axis Travel2400 mm
W-Axis Travel900 mm
Table Size2000 mm x 1800 mm
Table Capacity8 Ton
WMW Union Germany

Jurastic Spain

SpecificationDetails
Spindle Diameter110 mm
X-Axis Travel2100 mm
Y-Axis Travel1400 mm
Z-Axis Travel1600 mm
W-Axis Travel700 mm
Table Size1250 mm x 1250 mm
Table Capacity5 Ton
Jurastic Spain

Richard UK

SpecificationDetails
Spindle Diameter100 mm
X-Axis Travel1800 mm
Y-Axis Travel1600 mm
Z-Axis Travel1800 mm
W-Axis Travel700 mm
Table Size1250 mm x 1250 mm
Table Capacity6 Ton
Richard UK

HBM with PLC and 3-Axis DRO

Pegard Germany

SpecificationDetails
Spindle Diameter90 mm
X-Axis Travel900 mm
Y-Axis Travel1000 mm
Z-Axis Travel900 mm
W-Axis Travel600 mm
Table Size900 mm x 900 mm
Table Capacity3 Ton
HBM with PLC and 3-Axis DRO - Pegard Germany

Richard UK

SpecificationDetails
Spindle Diameter127 mm
X-Axis Travel2600 mm
Y-Axis Travel2000 mm
Z-Axis Travel2600 mm
W-Axis Travel1000 mm
Table Size1600 mm x 1600 mm
Table Capacity10 Ton
HBM with PLC and 3-Axis DRO - Richard UK

WMW Union Germany

SpecificationDetails
Spindle Diameter110 mm
X-Axis Travel2000 mm
Y-Axis Travel1600 mm
Z-Axis Travel2000 mm
W-Axis Travel700 mm
Table Size1600 mm x 1400 mm
Table Capacity6 Ton
HBM with PLC and 3-Axis DRO - WMW Union Germany

CNC Vertical Turning Lathes (VTL)

BERTHIEZ France (2 Units)

Unit 1

SpecificationDetails
Spindle Diameter3300 mm
X-Axis Travel1950 mm
Y-Axis Travel1805 mm
Z-Axis Travel800 mm
W-Axis Travel600 mm
CNC Vertical Turning Lathe Unit 1

Unit 2

SpecificationDetails
Spindle Diameter3300 mm
X-Axis Travel1950 mm
Y-Axis Travel1805 mm
Z-Axis Travel800 mm
W-Axis Travel600 mm
CNC Vertical Turning Lathe Unit 2

VTL with DRO

OM LTD Japan

SpecificationDetails
Swing Diameter9000 mm
Turning Height4500 mm
Table Diameter5000 mm
Table CapacityNot specified
VTL with DRO - OM LTD Japan

Bullard USA

SpecificationDetails
Swing Diameter1500 mm
Turning Height900 mm
Table Diameter1200 mm
Table Capacity6 Ton
VTL with DRO - Bullard USA

Stanko Russia

SpecificationDetails
Swing Diameter1600 mm
Turning Height1000 mm
Table Diameter1400 mm
Table CapacityNot specified
VTL with DRO - Stanko Russia

Radial Drilling Machines

CSEPAL Hungary (2 Units)

Unit 1

SpecificationDetails
Spindle Diameter80 mm
Drilling Capacity63 mm
Arm Length2000 mm
Working Height1500 mm
Radial Drilling Machine Unit 1 - CSEPAL Hungary

Unit 2

SpecificationDetails
Spindle Diameter150 mm
Drilling Capacity100 mm
Arm Length3500 mm
Working Height2500 mm
Radial Drilling Machine Unit 2 - CSEPAL Hungary

Girads Germany

SpecificationDetails
Spindle Diameter100 mm
Drilling Capacity80 mm
Arm Length2500 mm
Working Height2000 mm
Radial Drilling Machine - Girads Germany
